DCM4CHEE Archive 5 Tutorial Series

DCM4CHEE
1

In this topic I will publish tutorials for DCM4CHEE.

Please comment on which features are you are interested in.

2

Episode 1 Login & Study Search Basics in DCM4CHEE Archive 5

1 Like
3

Here is episode 2 showing how to upload dicom files and also how to download them from the DCM4CHEE archive user interface.

4

In episode 3 you can see how to delete studies from the DCM4CHEE DICOM archive.

5

Episode 4 released

I show you how you can move a study from one patient to another in DCM4CHEE Archive 5. This can be used for example in a situation when the user selected the incorrect modality worklist entry or manually entered the incorrect patient.

6

Episode 5 released

I show you how you can split a study in DCM4CHEE Archive 5. This can be used for example in a situation where we had two patients in a row and we by accident send all the images for both of those two patients to the first patient.

7

Episode 6 released:

In this step-by-step tutorial, I’ll show you how to query and retrieve DICOM studies from a DCM4CHEE archive using the Mito DICOM viewer. You’ll learn how to configure AE Titles, set up routing in the DCM4CHEE admin UI, and test the C-FIND and C-MOVE / C-STORE operations.

:magnifying_glass_tilted_left: What you’ll learn:
How to configure Mito for query/retrieve (C-FIND and C-STORE)
How to create a new AE Title and routing rule in DCM4CHEE
How to successfully query and retrieve DICOM studies from DCM4CHEE

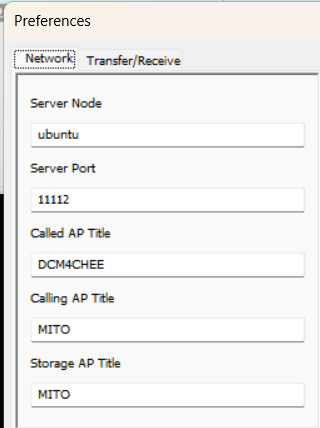

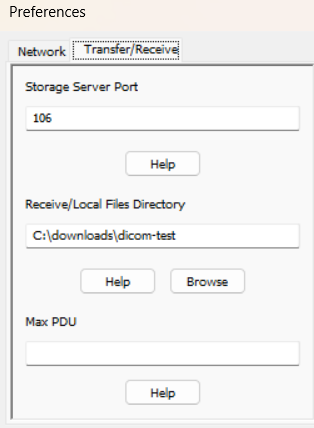

MITO configuration used:

image320×428 18.5 KB

image314×428 19.1 KB

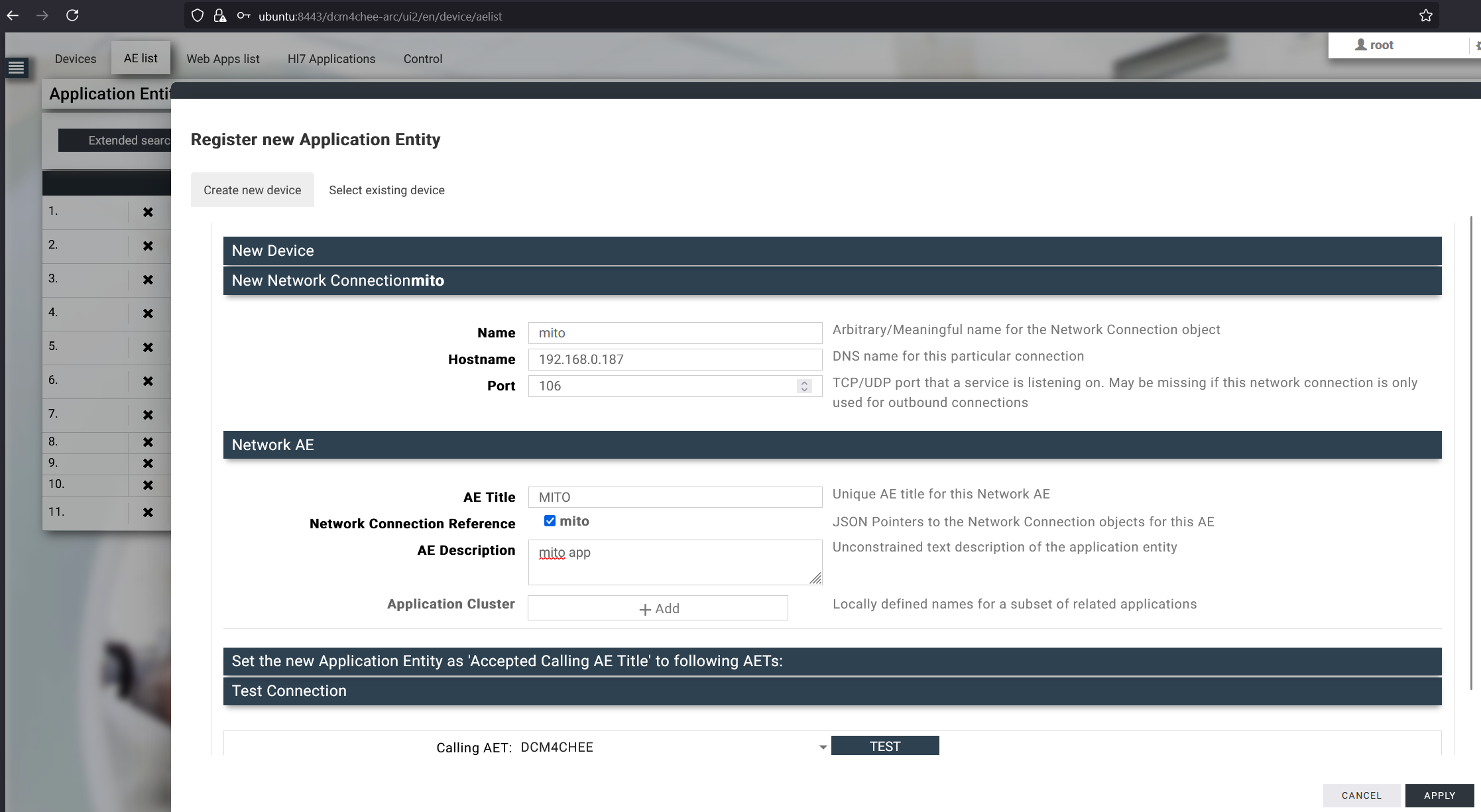

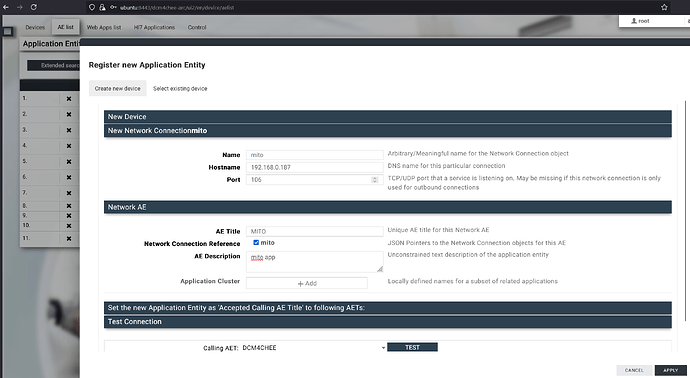

DCM4CHEE configuration:
Some written instructions here as well: Remote Application Entity · dcm4che/dcm4chee-arc-light Wiki · GitHub

image2234×1225 316 KB

8

How do i set autoroute to the destination AE

9

Hi mugwero,

so to clarify what you are asking about I think you mean how to automatically send an incoming DICOM study to an external AE in addition to storing it in the DCM4CHEE archive.

DCM4CHEE supports this behavior via Forward Rules or Export Rules in its configuration.

Here is some documentation on it:
Forwarding of received instances · dcm4che/dcm4chee-arc-light Wiki · GitHub

Does this help?

Here is a video on how to do the auto forwarding in DCM4CHEE and I also demonstrate how it works and show the export task and the results in the destination archive.

It’s a three step process to configure auto forwarding of DICOM studies in DCM4CHEE:

  1. Create a new destination AET / device
  2. create export rule
  3. create exporter / export descriptor

10

yes forwarding rules can you do a video on it ?

11

See the new auto forwarding tutorial video posted in the above post. Hope this helps :slightly_smiling_face:

1 Like
12

this was very helpful Mr. john :saluting_face: one more question what about auto delete of images for a period of time like after one month

13

Glad it was helpful.
There is some documentation about retention policies here: Study Retention Policy · dcm4che/dcm4chee-arc-light Wiki · GitHub

Have you tried that already?

14

yes i have but its like i missed something out can you also do a guide to see if i did anything in order i would really appreciate
