DICOM Test Tools

DICOM
1

Please share your favourite DICOM Test tools in this topic.

1 Like
2

Alexamon DICOM sender

Download link:

Platform: Windows

Features:

  • DICOM SCU C-STORE
  • Modality Worklist query
  • HL7 Send

Quick tutorial on the tools C-STORE functionality:

1 Like
3

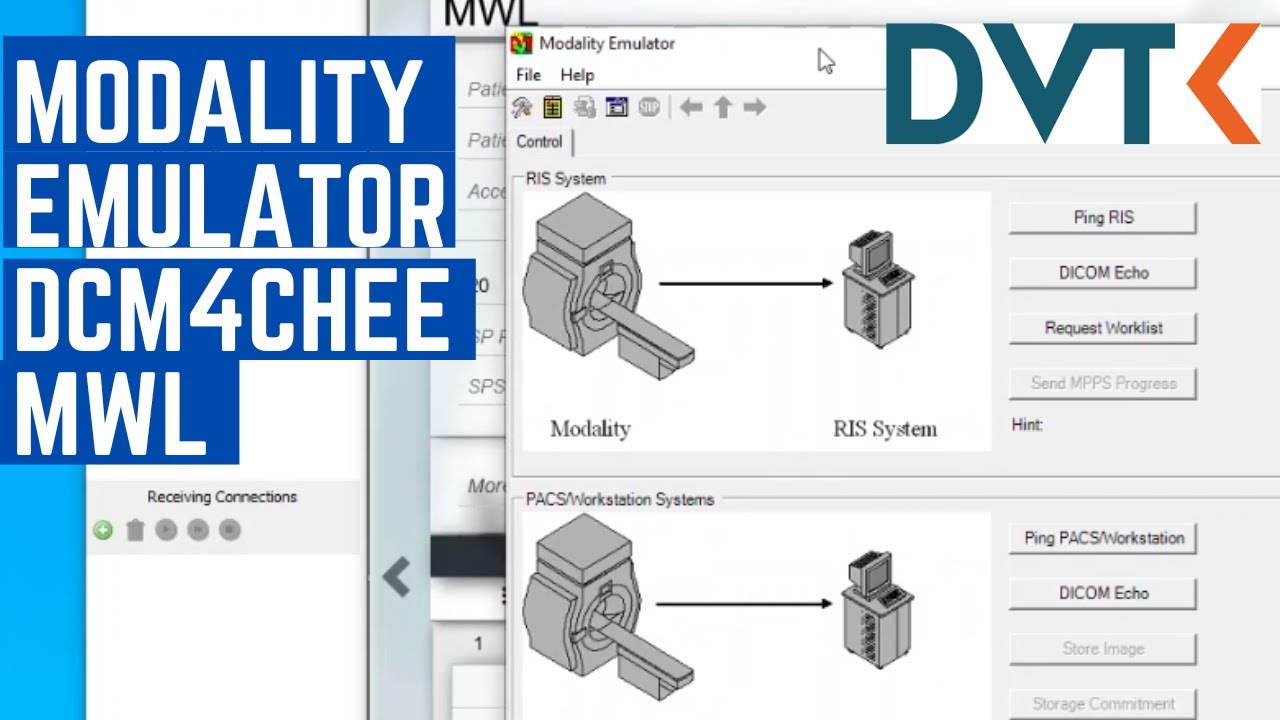

How to Use DVTK Modality Emulator with DCM4CHEE Modality Worklist

In the video I show you how you can use the DVTK Modality Emulator to read content from a Modality worklist and how to send DICOM images to a VNA or PACS. I also show you how you can use the DCM4CHEE Modality worklist (MWL) and how to populate an entry into it with an order message sent via the hapitestpanel tool. For a written description check my blog entry about the topic: https://openintegrator.com/how-to-use… If DICOM ECHO fails with the DVTK Modality Emulator my video and blog post also address that issue:

  • After installing and configuring the Modality Emulator you will notice that DICOM Echo doesn’t work and the log shows the following error:
  • No Command Field (0000,0100) attribute value present in DICOM command
  • No Data Set Type (0000,0800) attribute value present in DICOM command
  • This error is related to the DVTK DICOM definition files missing.

Check my blog post above for the solution

1 Like
4

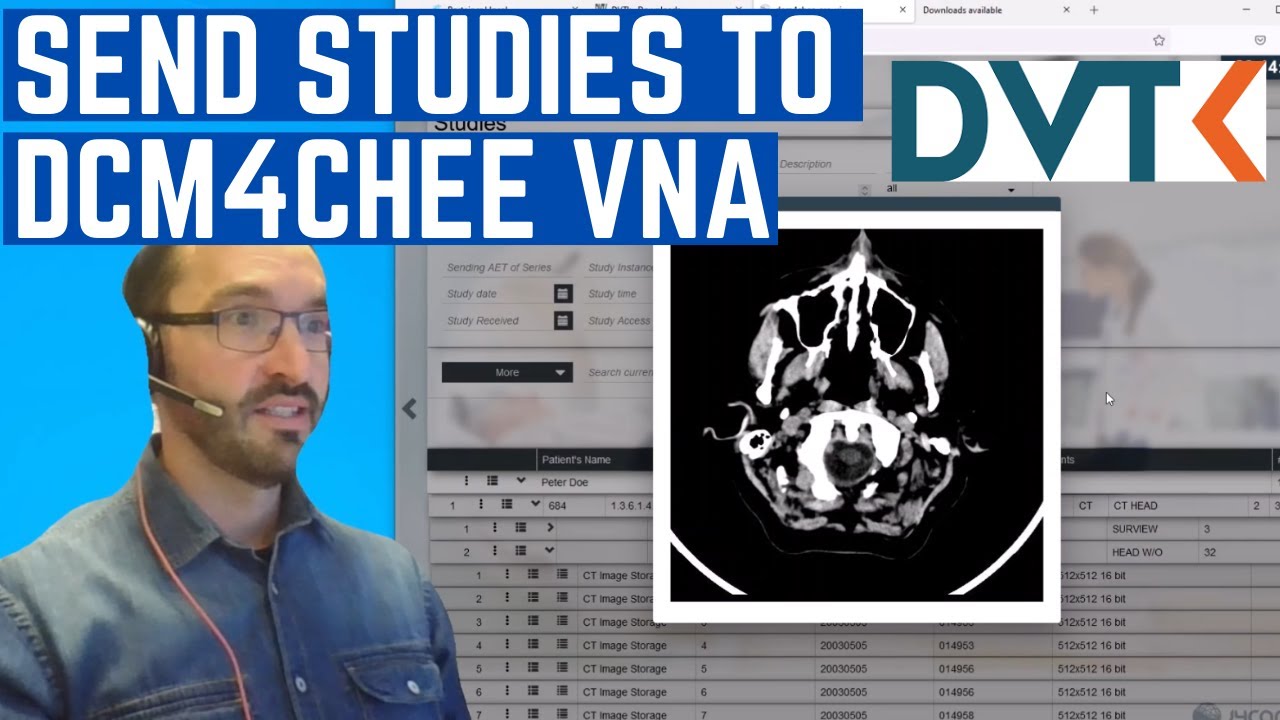

How to Send DICOM Studies with DVTK Storage SCU Emulator to dcm4chee VNA

DVTK Storage SCU Emulator DVTk · Downloads

5

Mito DICOM Viewer MITO - DICOM Viewer download | SourceForge.net
Also Wireshark for analyzing DICOM traffic
Wireshark • Go Deep | Download

This tool is able to query and retrieve via C-FIND / C-MOVE

You can see a little bit of how to configure and use it in these two videos:
