The OHIF Viewer documentation explains how to change the viewer logo under the Viewer Theming - Whitelabeling section.
Essentially, you need to modify the OHIF app-config.js file, adding a whiteLabeling section.

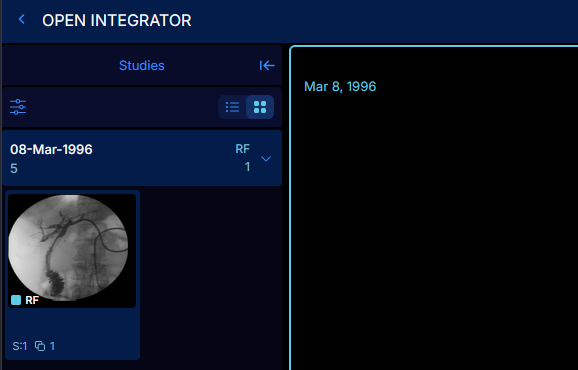

The end result looks in my case like this:
In this video I walk you through the whole config change:
Option A) You can replace the logo section with a text section like this:
whiteLabeling: {
createLogoComponentFn: function(React) {
return React.createElement(
'a',
{
target: '_blank',
rel: 'noopener noreferrer',
className: 'text-white underline',
href: 'https://openintegrator.com/',
},
React.createElement('h5', {}, 'OPEN INTEGRATOR')
);
},
},
Option B) You can replace the logo section with an image like this:
whiteLabeling: {
createLogoComponentFn: function(React) {
return React.createElement(
'a',
{
target: '_self',
rel: 'noopener noreferrer',
className: 'text-purple-600 line-through',
href: '/',
},
React.createElement('img', {
src: './customLogo.svg',
// className: 'w-8 h-8',
})
);
},
},
You can place the whiteLabeling section for example, just before the hotkeys.
My full app-config.js looks like this:
window.config = {
routerBasename: '/ohif',
extensions: [
],
modes: [],
customizationService: {
// Shows a custom route -access via http://localhost:3000/custom
// helloPage: '@ohif/extension-default.customizationModule.helloPage',
},
showStudyList: true,
// some windows systems have issues with more than 3 web workers
maxNumberOfWebWorkers: 3,
// below flag is for performance reasons, but it might not work for all servers
omitQuotationForMultipartRequest: true,
showWarningMessageForCrossOrigin: true,
showCPUFallbackMessage: true,
showLoadingIndicator: true,
strictZSpacingForVolumeViewport: true,
maxNumRequests: {
interaction: 100,
thumbnail: 75,
// Prefetch number is dependent on the http protocol. For http 2 or
// above, the number of requests can be go a lot higher.
prefetch: 25,
},
// filterQueryParam: false,
dataSources: [
{
friendlyName: 'Orthanc local',
namespace: '@ohif/extension-default.dataSourcesModule.dicomweb',
sourceName: 'dicomweb',
configuration: {
name: 'orthanc',
wadoUriRoot: '/orthanc-container/dicom-web',
qidoRoot: '/orthanc-container/dicom-web',
wadoRoot: '/orthanc-container/dicom-web',
qidoSupportsIncludeField: false,
supportsReject: false,
imageRendering: 'wadors',
thumbnailRendering: 'wadors',
enableStudyLazyLoad: true,
supportsFuzzyMatching: false,
supportsWildcard: true,
staticWado: true,
singlepart: 'bulkdata',
acceptHeader: [ 'multipart/related; type=application/octet-stream; transfer-syntax=*'],
bulkDataURI: { // note: this won't be required anymore once this issue is solved and the associated patch is released: https://github.com/OHIF/Viewers/issues/4256
enabled: true
},
},
}],
httpErrorHandler: error => {
// This is 429 when rejected from the public idc sandbox too often.
console.warn(error.status);
},
defaultDataSourceName: 'dicomweb',
whiteLabeling: {
createLogoComponentFn: function(React) {
return React.createElement(
'a',
{
target: '_blank',
rel: 'noopener noreferrer',
className: 'text-white underline',
href: 'https://openintegrator.com/',
},
React.createElement('h5', {}, 'OPEN INTEGRATOR')
);
},
},
hotkeys: [
{
commandName: 'incrementActiveViewport',
label: 'Next Viewport',
keys: ['right'],
},
{
commandName: 'decrementActiveViewport',
label: 'Previous Viewport',
keys: ['left'],
},
{ commandName: 'rotateViewportCW', label: 'Rotate Right', keys: ['r'] },
{ commandName: 'rotateViewportCCW', label: 'Rotate Left', keys: ['l'] },
{ commandName: 'invertViewport', label: 'Invert', keys: ['i'] },
{
commandName: 'flipViewportHorizontal',
label: 'Flip Horizontally',
keys: ['h'],
},
{
commandName: 'flipViewportVertical',
label: 'Flip Vertically',
keys: ['v'],
},
{ commandName: 'scaleUpViewport', label: 'Zoom In', keys: ['+'] },
{ commandName: 'scaleDownViewport', label: 'Zoom Out', keys: ['-'] },
{ commandName: 'fitViewportToWindow', label: 'Zoom to Fit', keys: ['='] },
{ commandName: 'resetViewport', label: 'Reset', keys: ['space'] },
{ commandName: 'nextImage', label: 'Next Image', keys: ['down'] },
{ commandName: 'previousImage', label: 'Previous Image', keys: ['up'] },
// {
// commandName: 'previousViewportDisplaySet',
// label: 'Previous Series',
// keys: ['pagedown'],
// },
// {
// commandName: 'nextViewportDisplaySet',
// label: 'Next Series',
// keys: ['pageup'],
// },
{
commandName: 'setToolActive',
commandOptions: { toolName: 'Zoom' },
label: 'Zoom',
keys: ['z'],
},
// ~ Window level presets
{
commandName: 'windowLevelPreset1',
label: 'W/L Preset 1',
keys: ['1'],
},
{
commandName: 'windowLevelPreset2',
label: 'W/L Preset 2',
keys: ['2'],
},
{
commandName: 'windowLevelPreset3',
label: 'W/L Preset 3',
keys: ['3'],
},
{
commandName: 'windowLevelPreset4',
label: 'W/L Preset 4',
keys: ['4'],
},
{
commandName: 'windowLevelPreset5',
label: 'W/L Preset 5',
keys: ['5'],
},
{
commandName: 'windowLevelPreset6',
label: 'W/L Preset 6',
keys: ['6'],
},
{
commandName: 'windowLevelPreset7',
label: 'W/L Preset 7',
keys: ['7'],
},
{
commandName: 'windowLevelPreset8',
label: 'W/L Preset 8',
keys: ['8'],
},
{
commandName: 'windowLevelPreset9',
label: 'W/L Preset 9',
keys: ['9'],
},
],
};
Note that this is a modified config file from the installation done in the below installation video:
